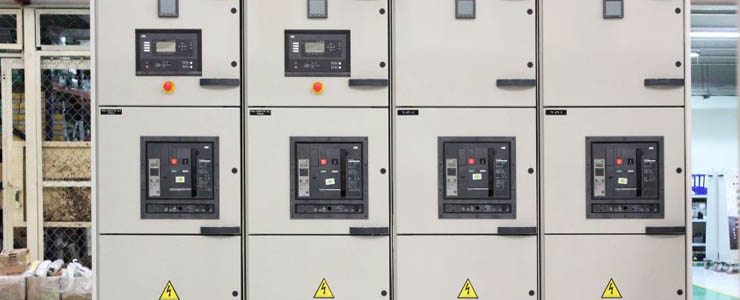

Synchronising Panels
Synchronization Switchgear Panel also referred to as Paralleling Switchgear provides a means to synchronize and parallel multiple generators of same or different sizes make on a common bus. Reliability, Redundancy, Flexibility, Maintainability, Economy are some of the advantages of Synchronization Switchgear.
In our Synchronization Switchgear System, each Generator has its own control panel with all required control devices, which works in conjunction with System Master Controls to perform the overall operation of synchronization switchgear system. Available as separate control panel or integrated with Switchgear.
Features
- Multi-Generator Synchronization Panel
- Automatic and Manual operation
- PLC based and Synchronization / Load Sharing by controller
- Employs random synchronization, KW / KVAR sharing
- Optimization based on Load vs. Capacity calculations
- Active Load Control – Load Add / Load Shed (KW and Freq.)
- HMI for operator interface to monitor and control
- Multi-User Access – multiple levels with password
- Test function – No-Load, With-Load, Load Banking
- Monitoring – DMM, Generator, Fuel System, ATS etc.
- Communication – Modbus TCP for SCADA / BMS
- Hooter-alarm annunciation with silence Push Button
- LLOP (Low Lube Oil Pressure) and HWT (High Water Temperature)
Product Optionss
- Integrated or Separate controls
- Indoor and Outdoor
- Low Voltage 440V, 6300A or Medium Voltage 11KV, 600A
- Single or Multiple Generator Main Bus
- Generators with equal or different capacities
